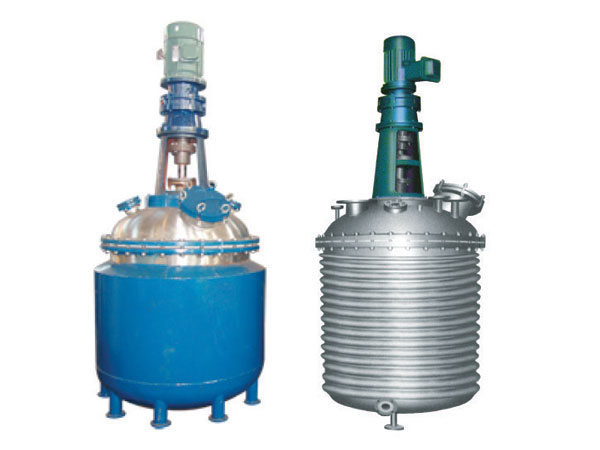

Stainless steel from the lid, Flashlight, jacket, blender, shaft seal gearing and supporting other components, with the pot and the pot material contact parts are made at OCrl8Ni9 or 1Crl8Ni9Ti stainless acid steel.
Because users due to the production process, operating conditions vary, jacket heating type into electric heating rods, steam heating, oil heating cycle, the seal device is divided into packing seal and mechanical seal, mixing patterns are anchored, paddle, pot wheel, promote or box type. The number of openings, specifications or other requirements can be based on user requirements and design, production.
Stainless steel heating coil outside the main technical parameters of reactor
|
Specifications
|
Actual capacity（L）
|
Cylinder diameter（mm）
|
Outer coil heat transfer area
（m2）
|
Inner coil heat transfer area
（m2）
|
Motor power（kw）
|
|
500L
|
550
|
900
|
2.438
|
2
|
2.2
|
|
1000L
|
1100
|
1200
|
2.867
|
2.6
|
4
|
|
1500L
|
1650
|
1200
|
3.537
|
3.1
|
4
|
|
2000L
|
2200
|
1300
|
4.165
|
3.8
|
5.5
|
|
3000L
|
3300
|
1500
|
5.569
|
5.4
|
7.5
|
|
6000L
|
6600
|
1800
|
10.323
|
8.7
|
15
|
|
10000L
|
11000
|
2200
|
50.345
|
10.9
|
18.5
|
|
20000L
|
22000
|
2400
|
101.679
|
13.8
|
22
|
Electric heating reactor types and specifications, the main technical parameters
|
Model
|
Nominal
capacity
（L）
|
Actual
capacity
（L）
|
Electric
Power
（kw）
|
Jacket
capacity
（L）
|
The
pot size
（mm）
|
Jacket
size
（mm）
|
Diameter
size（mm）
|
Copper
bearing
hole
center
distance
（mm）
|
Reducer
Model
|
Motor
Power
（n/kw）
|
Stirring
speed
（r.p.m）
|
Weight
（kg）
|
|
DFG100
|
100
|
127
|
6×2
|
127
|
φ500
|
φ700
|
φ1004×2120
|
φ894
|
BLB11-17
|
1450/1.1
|
80
|
340
|
|
DFG200
|
200
|
247
|
6×2
|
200
|
φ600
|
φ800
|
φ1104×2310
|
φ960
|
BLB11-17
|
1450/1.5
|
80
|
520
|
|
DFG300
|
300
|
327
|
6×3
|
218
|
φ700
|
φ900
|
φ1208×2495
|
φ1098
|
BLB12-17
|
1450/2.2
|
80
|
700
|
|
DFG500
|
500
|
509
|
9×3
|
269
|
φ900
|
φ1100
|
φ1468×2695
|
φ1328
|
BLB12-17
|
1450/2.2
|
80
|
930
|
|
DFG1000
|
1000
|
1017
|
9×4
|
400
|
φ1200
|
φ1400
|
φ1896×3110
|
φ3696
|
BLB13-17
|
1450/3or
1450/4
|
80
|
1610
|
|
DFG1500
|
1500
|
1703
|
9×4
|
500
|
φ1400
|
φ1600
|
φ2050×3700
|
φ1850
|
BLB13-17
|
1450/4
|
80
|
1920
|
|
DFG2000
|
2000
|
2244
|
12×4
|
600
|
φ1500
|
φ1700
|
φ2150×3975
|
φ1980
|
BLB13-17
|
1450/5.5
|
80
|
2295
|
|
DFG3000
|
3000
|
3055
|
15×4
|
800
|
φ1600
|
φ1800
|
φ2250×4250
|
φ2050
|
BLB13-17
|
1450/7.5
|
80
|
3020
|
|
