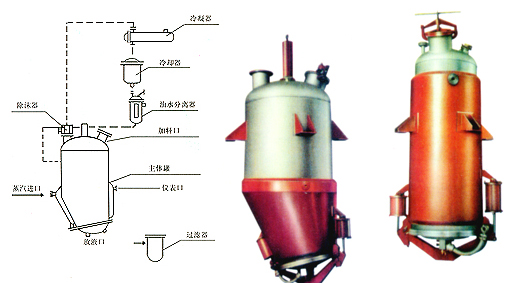

| Multifunctional extraction tank |
| This equipment can be used in medicine, food, chemical industry pressure, decoction, immersion, hot reflux, forced circulation penetration, aromatic oil extraction and organic solvent recovery, and other process operations. With high efficiency, easy operation. Extraction unit means good material, widely used in pharmaceutical, food, chemical and other industries volatile oil. |
 |
| The main technical parameters |
| |
0.5 |
1.0 |
2.0 |
3.0 |
6.0 |
| Full volume(L) |
500 |
1200 |
2500 |
1200 |
1200 |
| Tank design pressure(MPa) |
0.09 |
| Jacket design pressure(MPa) |
0.3 |
| Allow the tank vacuum degree(MPa) |
60 |
| Compressed air pressure(MPa) |
0.6-0.7 |
| Door diameter cast oblique(mm) |
300 |
300 |
400 |
300 |
300 |
| Heating area(M2) |
2.4 |
3.1 |
4.2 |
3.1 |
3.1 |
| Condensation area(M2) |
3 |
5 |
5 |
5 |
5 |
| Cooling area(M2) |
1 |
1 |
1 |
1 |
1 |
| Filter area(M2) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
| Weight(kg) |
1000 |
1500 |
1800 |
1500 |
1500 |
| Dimensions(mm) |
φ1400
×φ2300 |
φ1700
×φ2900 |
φ1800
×φ3700 |
φ1700
×φ2900 |
φ1700
×φ2900 |
| Energy(kg/h) |
200 |
245 |
325 |
245 |
|
|
|   |
|
