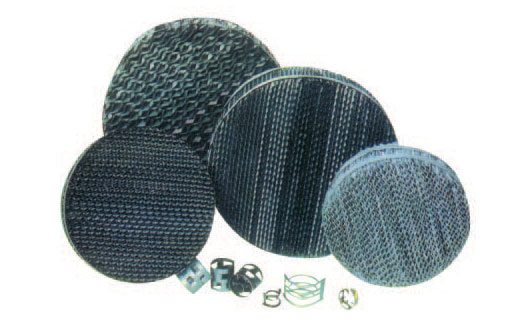

I plant in the Shanghai Chemical Industry Institute of guidance, professional production of new efficient corrugated structured packing and random packing, can be stainless steel, copper, aluminum, titanium, molybdenum, titanium, and other materials produced. Widely in spices, pesticides, fine chemicals, petrochemicals and other fields.
Structured packing exceptionally mesh, mesh, plates, rolled plates and so on.
Random packings are: Metal Pall Ring packing, metal ladder ring packing, metal ring saddle that British Teluo Si filler metal.
SW-type mesh packing geometry parameters
|
Packing Model
|
Material
|
Peak height
H mm
|
The specific surface area
㎡/m3
|
Hydraulic diameter
Ah mm
|
Tilt angle
|
Porosity
%
|
F factor
m/skg/㎡
|
Theoretical plates
No/m
|
Pressure drop
mmHG/m
|
|
SW-1
|
Stainless steel
|
4.5
|
643
|
5.7
|
45o
|
91.6
|
1.4-2.2
|
6-8
|
2-3.5
|
|
SW-2
|
6.5
|
450
|
9
|
30o
|
95.5
|
1.5
|
4-5
|
1.6-1.8
|
Gauze packing geometry parameters SC = CY SB = BX
|
Packing Model
|
Material
|
Peak height
H mm
|
The specific surface area
㎡/m3
|
Hydraulic diameter
Ah mm
|
Tilt angle
|
Porosity
%
|
F factor
m/skg/㎡
|
Theoretical plates
No/m
|
Pressure drop
mmHG/m
|
|
CY
|
Stainless steel
|
4.3
|
700
|
5
|
45o
|
87-90
|
1.3-2.4
|
6-9
|
5
|
|
BX
|
6.3
|
500
|
7.3
|
30o
|
95
|
2-2.4
|
4-5
|
1.5
|
Corrugated plate packing geometry parameters
|
Packing Model
|
Material
|
Peak height
H mm
|
The specific surface area
㎡/m3
|
Hydraulic diameter
Ah mm
|
Tilt angle
|
Porosity
%
|
F factor
m/skg/㎡
|
Theoretical plates
No/m
|
Pressure drop
mmHG/m
|
|
SM125
|
1Crl8Ni9Ti
|
24
|
125
|
35
|
45o
|
98.5
|
3
|
1-1.2
|
1.5
|
|
SM225
|
12
|
250
|
15.8
|
45o
|
97
|
2.6
|
2-3
|
1.5-2
|
|
SM325
|
8
|
350
|
12
|
45o
|
95
|
2
|
3.5-4
|
1.5
|
|
SM425
|
6.5
|
450
|
9
|
45o
|
93
|
1.5
|
3-1
|
1.8
|
Metal Pall Ring geometrical parameters
|
Model Nominal size
|
Diameter, height, thickness
d×h×
|
Number of accumulation
n/m3
|
Accumulation of heavy
rpkg/m3
|
The specific surface area
a㎡/m3
|
Void
%
|
Dry packing factor
a/m-1
|
|
Dg16
|
16×16×0.8
|
14300
|
216
|
239
|
0.928
|
299
|
|
Dg25
|
25×25×0.5
|
55900
|
427
|
219
|
0.934
|
269
|
|
Dg38
|
38×38×0.6
|
13000
|
365
|
129
|
0.945
|
153
|
|
Dg50
|
50×50×1
|
6500
|
395
|
112.3
|
0.949
|
131
|
|
Dg76
|
76×76×1.2
|
1860
|
313
|
|
0.95
|
|
|
