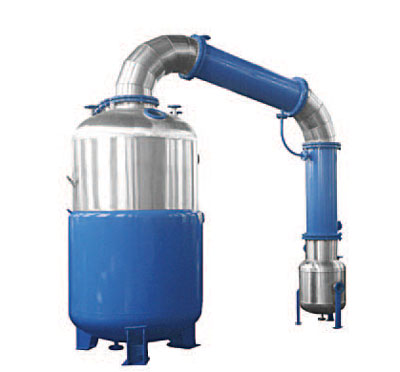

The main purpose：For the pharmaceutical, food and chemical industries concentrated liquid evaporation intensity generally 50-60Kg / m2h, the proportion of concentrate should not be greater than 1.25, otherwise the material difficult.
（I） |

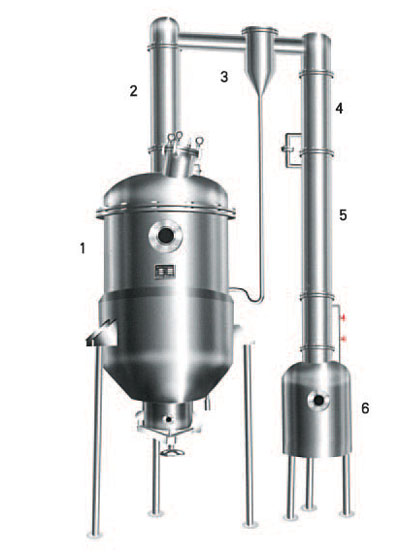

Schematic diagram of the main components
1.Concentrate tank
2The first condenser
3.Vapor-liquid separator
4.Second condenser
5.Coolers
6.By tank
|
（II） |
Structure：The equipment includes concentration tank, the first condenser, vapor-liquid separator, the second condenser, cooler, the liquid barrels leave components, all manufactured from stainless steel. Concentrated cans jacket structure, condenser tube type, coolers for snake tube.
|
Volume（L）
Project
|
50
|
100
|
200
|
300
|
500
|
700
|
|
Steam pressure MPa
|
≤0.15
|
≤0.15
|
≤0.15
|
≤0.15
|
≤0.15
|
≤0.15
|
|
Vacuum degree mmHg
|
≤700
|
≤700
|
≤640
|
≤640
|
≤600
|
≤600
|
|
Heating area M2
|
0.4
|
0.59
|
0.8
|
1.1
|
1.45
|
1.8
|
|
Condensation area M2
|
1.2
|
1.7
|
2.45
|
3.0
|
3.2
|
3.6
|
|
Cooling area M2
|
0.25
|
0.35
|
0.4
|
0.6
|
0.7
|
0.85
|
|
By tank volume L
|
15
|
45
|
60
|
75
|
100
|
125
|
|
Equipment Net kg
|
~350
|
~450
|
~550
|
~650
|
~800
|
~1000
|
|
Dimensions mm
Length × width × height
|
1200×600×2200
|
1350×750×2200
|
1700×800×2700
|
2100×1200×3400
|
2100×1200×3400
|
2400×1300×3400
|
|
